Stay comfortable with energy from the earth.

Energy Saving Tips

  • Yearly system inspections
  • Sealing of vents and duct work
  • Proper home insulation levels
  • Routine cleaning and servicing of HVAC system
  • Routine cleaning of duct system
  • Implementation of zoning systems

Click the logos below to explore our full product line

ClimateMaster Geothermal Heat Pumps

GeoComfort Geothermal Heat Pumps

Maintenance, Repair and Installation

We are a Full Service Geothermal Heating and Cooling Company. We can provide you with a complete line of residential products. We have a highly skilled and factory trained service technicians who can master any geothermal job you may have.


Stay comfortable year round with an a geothermal heat pump from ClimateMaster or GeoStar.

First of all, we're on your side! We're committed to finding the best possible comfort solutions for you and making them available at the lowest possible cost. We take our work, which is your comfort, very seriously.

Closed loop systems are becoming the most common type of loops. When properly installed, they are economical, efficient, and reliable. Water is circulated through a continuous buried pipe.


Armstrong Air A/C are efficient and reliable heating systems for our region.

The closed loop system is environmentally friendly because water in the loop prevents contamination to the external environment. The length of loop piping varies depending on ground temperature, thermal conductivity of the ground, soil moisture, and system design.


L & H Services provides maintenance and repairs for all makes and models of geothermal heat pumps.

We install our featured and industry leading Geothermal Heat Pumps from ClimateMaster and GeoComfort

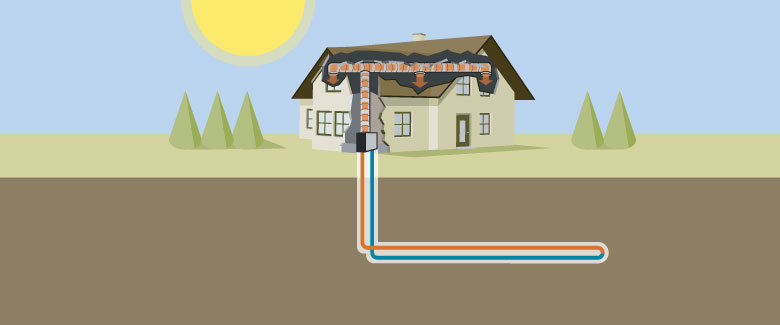

Horizontal Loops


Horizontal Loop

Generally the most cost-effective for small installations, horizontal closed loop works best particularly in new construction where sufficient land area is available.

This type of geothermal heat installation involves burying pipe in trenches dug with backhoes or chain trenchers. Up to six pipes, usually in parallel connections, are buried in each trench, with minimum separations of a foot between pipes and ten to fifteen feet between trenches.

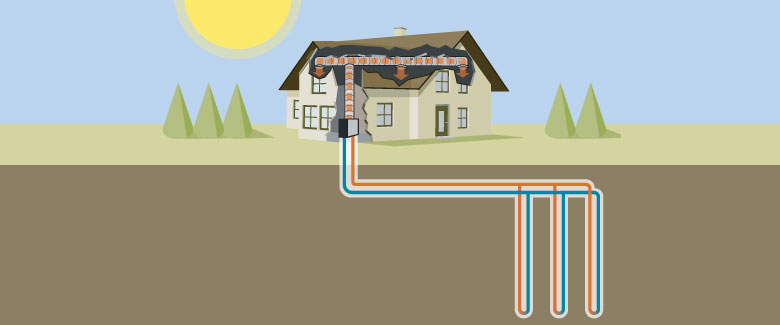

Vertical Loops


Vertical Loop

Vertical closed loops are the preferred geothermal heat system for many situations. Vertical loops are used when the soil is too shallow for trenching and to minimize the disturbance to existing landscaping.

For vertical closed loop systems, a U-tube (and, rarely, two U-tubes) is installed in a well drilled 100 to 400 feet deep. Because conditions in the ground may vary greatly, loop lengths can range from 130 to 300 feet per ton of heat exchange. Multiple drill holes are required for most installations, where the pipes are generally joined in parallel or series-parallel configurations.

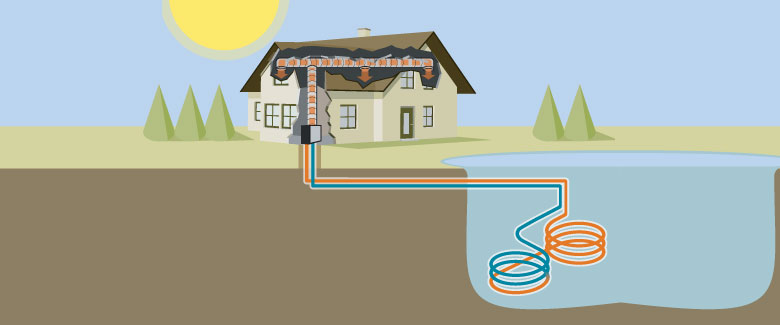

Pond Loop System


Pond Loop System

A pond closed loop is a special kind of closed loop system. Where there is a pond or stream that is deep enough and with enough flow, closed loop coils can be placed on the pond bottom.

Fluid is pumped in the same manner as a conventional closed loop ground system where conditions are suitable. The economics of this geothermal heat method are very attractive, and no aquatic system impacts have been shown.
