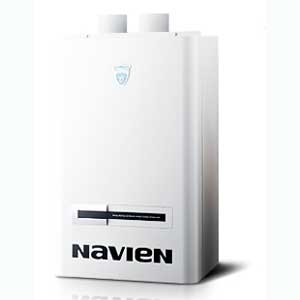

CH Series High Effiency Wall-Hung Combi
Condensing efficiency in a compact wall-hung design.
- Superb Condensing Efficiency & PVC Venting - PVC venting up to 100 feet.
- Where Technology Meets Ecology, Combination Boiler - The ideal solution for customers who need both domestic hot water and a space heating application.
- Extended Life, Stainless Steel Heat Exchanger - Integrated primary and secondary heat exchangers prevent corrosion.
- Eco-friendly, Premixed Burner - Modulates both air and gas ratios required for optimal combustion.
- Leak Detector - Prevents damages to water heaters as well as personal property.
- Automatic Water Filling System - Automatically fills water into space heating pipes when the unit senses a water shortage.
- Powerful Anti-Freeze Feature - The Combis built-in Control System is designed to keep the units plumbing frost free in winter conditions.
| MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions HxWxD | Water Content Gal. | Weight Lbs. |
|---|---|---|---|---|---|---|
| CH-180ASME | 17.0 | 0.0 | 91.0 | 28x17x12 | 0.00 | 74 |
| CH-210ASME | 20.0 | 0.0 | 91.0 | 28x17x12 | 0.00 | 84 |
| CH-240ASME | 20.0 | 0.0 | 91.0 | 28x17x12 | 0.00 | 84 |
Warranty Information
- Heat Exchanger for 120 months -
- All Parts for 60 months -
Available Documents
- View Document (Consumer Literature, Customer Information, Color)
- View Document (Owners Manual, Customer Information, In the Box)
