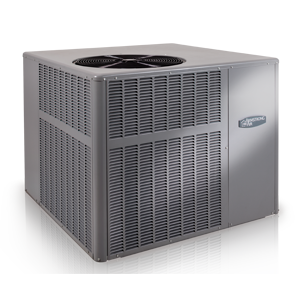

PRPDF Packaged Dual Fuel Heat Pumps

When you don’t want to sacrifice quality for lower utility bills' choose Armstrong PRPDF packaged units. They’re a smart choice for reliable heating and cooling' with the optional flexibility of dual-fuel operation. Dual-fuel operation selects the most efficient heating option – the electric heat pump for milder days or gas heat when temperatures drop

  • MHT™ Technology Armstrong Air’s proprietary heat transfer system. The coil features rifled tubing to enhance refrigerant flow' while lanced coil fins increase surface contact between metal and air. They combine for maximum heat transfer and efficiency.
  • Integrated Compressor Protection The combination of both high- and low-pressure switches gives additional reliability to each unit. The high-pressure switch prevents operation in the event that refrigerant pressures exceed safe levels' protecting the compressor. In the event that your unit does not have enough refrigerant' the low-pressure switch prevents the unit from drawing in moisture and other contaminants while operating
  • Single-Stage Scroll Compressor A time-proven design chosen for its consistent performance' incredible durability and long operating life' the single-stage scroll compressor works hard year after year
  • Tri-Diamond™ Technology Our unique Tri-Diamond design increases the heat exchanger’s surface area' making heat transfer more efficient. This allows for a smaller heat exchanger that requires less energy to operate.
  • Tilted Heat Exchanger By tilting the heat exchanger' the Tri-Diamond design eliminates issues caused by condensation developed during the cooling season. As a result' these units start up when they’re supposed to' year after year
  • Internal Monitoring Your Armstrong Air packaged unit’s electronic control system continuously monitors operation and generates LED codes to help technicians solve problems faster and more accurately.
MODELCooling Cap. MBtuHSEERHeating Input MBtuHHSPFGas Input MBtuHGas Output MBtuHAFUECFMDimensions HxWxDWeight Lbs.
PRPDF1424-07222.6 14.0 22.0 8.0 72.0 58.4 81.0 850 37 366
PRPDF1430-07228.6 14.0 27.0 8.0 72.0 58.4 81.0 1050 37 274
PRPDF1436-07234.0 14.0 33.4 8.0 72.0 58.4 81.0 1250 37 384
PRPDF1436-09034.0 14.0 33.4 8.0 90.0 72.9 81.0 1250 37 389
PRPDF1442-07240.0 14.0 39.0 8.0 72.0 58.4 81.0 1400 41 488
PRPDF1442-09040.0 14.0 39.0 8.0 90.0 72.9 81.0 1400 41 493
PRPDF1448-12646.0 14.0 45.0 8.0 126.0 102.1 81.0 1600 41 506
PRPDF1460-12657.0 14.0 56.0 8.0 126.0 102.1 81.0 1800 41 528

Warranty Information

  • All Parts for 120 months -
